German Historical Museum in Berlin

German Historical Museum, Berlin

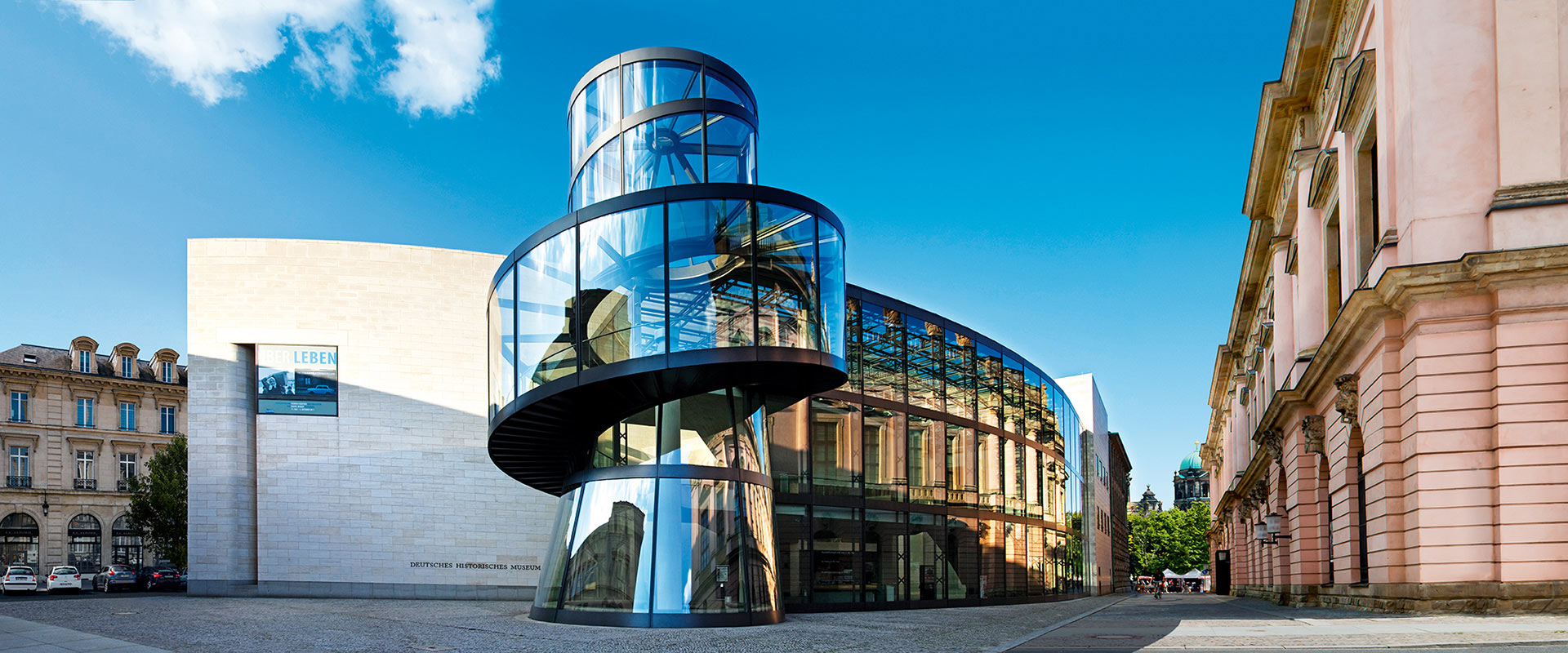

The German Historical Museum (DHM) in Berlin defines itself as a "place of enlightenment and discussion of the common history of Germans and Europeans". The DHM consists of the Zeughaus (armory), which in itself is steeped in history, and an exhibition hall designed by the famous Chinese-American architect Ieoh Ming Pei. The new four-storied hall of the DHM was opened directly behind the armory in 2003 after five years of construction.

In addition to the permanent exhibition "German History in Images and Artifacts" in the Zeughaus, which reflects 2,000 years of German history across an area of 8,000 square meters with more than 8,000 exhibits, the new exhibition hall mainly hosts temporary special exhibitions. Very close to the DHM you will find the Museumsinsel (Museum Island), Schinkel's Altes Museum (Old Museum), the Neue Wache (New Guardhouse) memorial and Humboldt University. Hybrid humidifiers from Condair provide a constant supply of hygienic humidity in the German Historical Museum.


Hybrid humidifier

Condair DL

The Condair DL is the next generation of the Condair Dual2—the world's most successful system for adiabatic humidification. Its hygienic credentials have proven successful in practice and were verified and certified by independent organizations with public responsibility.

Hybrid humidification relies exclusively on the advantages of atomization and evaporation. This results in the sustainable resolution of key problems which can emerge when these technologies are used in isolation. The humidification system is therefore the first choice in terms of hygiene, energy efficiency and cost-effectiveness.

Further information on the Condair DL

Patented HygienePlus® method

Basically, air conditioners and humidification devices are not sterile areas. Even when humidifying water of drinking-water quality is used, this is never completely germ-free. Therefore, microbes can always settle and form hazardous biofilms in humidifiers and in damp areas of air conditioners. Suitable hygiene measures are therefore essential to hinder the growth and propagation of pathogens in adiabatic humidifiers. The germ diagram points out the rapid propagation of microorganisms when no appropriate steps are taken to contain them. The patented HygienePlus® method provides for healthy air and a lasting hygienic environment.

HygienePlus Cartridge

Energy-efficient low-pressure system

The low-pressure mode of operation translates to significant energy savings due to the lesser compression work. By combining the Condair DL humidifier and the reverse osmosis of the Condair AT2, even a pressure booster pump on the humidification system becomes superfluous!

Condair DL jet

Schematic layout

Low-pressure systems generally get by with a significantly shallower design depth than high-pressure humidifiers. Due to the arrangement of the evaporator ceramics so that they cover the full area, and as a result of the spray cone of the molecular diffuser nozzles, the entire overall depth of the Condair DL can be reduced to up to 600 mm. Thanks to its compact design, the humidification chamber can also be shortened, achieving a significant saving in materials.

Schematic layout

PDF / Brochure: Condair DL hybrid humidifier
